Type SLC-C

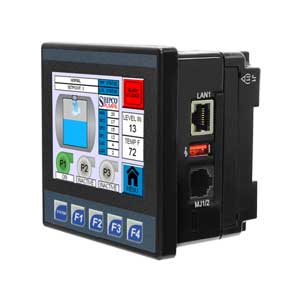

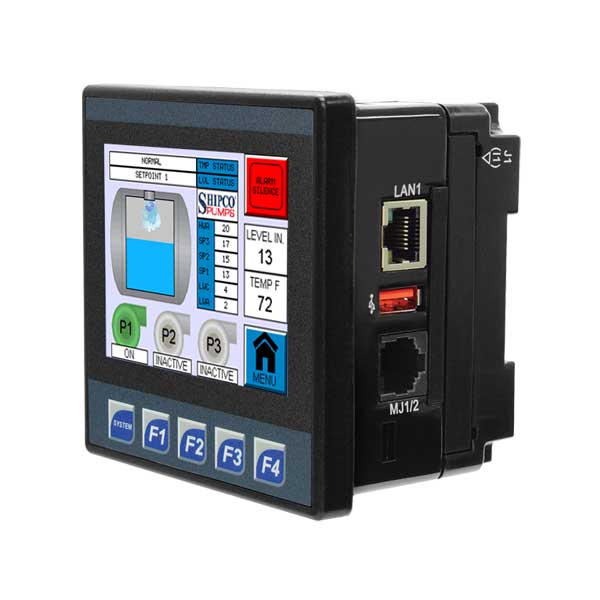

The Shipco® Type SLC-C is an economical method of automating functions on a Shipco® condensate unit. The SLC-C can monitor receiver status locally and remotely. Continuous level and temperature readings are sent to the SLC-C enabling it to perform various functions such as display status, read level set points, signal alarms, control pumps on a condensate unit. A separate method of pump alternation is not needed. The SLC-C is a programmable NEMA 4X controller featuring a full color touchscreen display. Support for building automation protocols including Modbus and BACnet are available.

If you have existing float switches or prefer to use them, the SLC-C will provide run status of pumps, trigger an alarm if a high-water float switch is available, and read temperature if a separate thermocouple is provided.

Features

• Live graphical and numeric indication for water level and temperature via the Shipco® Transmitter.
• Operates up to 3 pumps.
• Alternating control — Automatically changes lead pump on each cycle.
• Manual control — LEAD-LAG(-LAG2)-OFF selector switch.
• Test button bypasses control sequence to energize pumps until button is released.
• Pump graphics change color to indicate status (Green = ON, Red = FAULT, Grey = INACTIVE).
• Run Cycle Timers with manual reset.
• Failure indication and protection.
• High water alarm indicates overflow.
• Low water alarm indicates leaking tank.
• High temperature alarm indicates traps failed open.
• High temperature shutoff protects pumps from cavitation.
• Automatically adds cooling water to maintain operating temperature (optional).
• Alarm ledger automatically logs any irregular operating conditions.
• Loss of sensor signal indicators.

Hardware

• 4-inch full-color touchscreen display
• RS232/RS485 (RJ45 modular jack) port
• Ethernet/LAN port
• microSD card slot
• Protocols: Modbus® RTU, Modbus® TCP, BACnet IP or BACnet MS/TP
